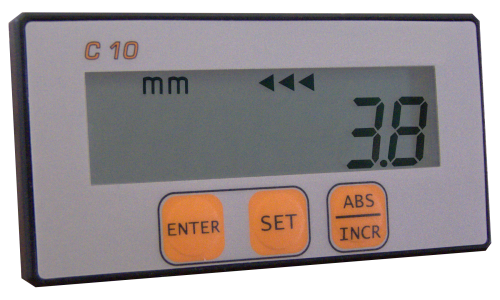

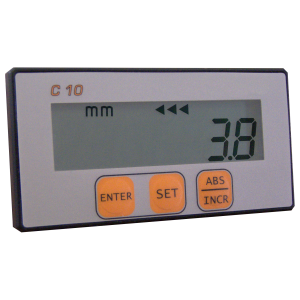

C10
Gallery
click thumbnail to view
- Battery power supply
- Battery lifetime 1 year min
- Resolution: 5 μm; 10 μm; 100 μm; 1 mm
- Sensor/tape gap - up to 2.5 mm
- Programmable zero point
- Programmable angle measurement
- Radius/diameter mode
- Programmable ratio coefficient
- Multifunctional LCD Display
- Battery check and battery monitor
- Self-diagnostics in real time
- Automatic adjustment to wide mounting tollerances
- Parameters held in permanent memory
- Real time mm/inch/deg conversion
| Feature | Technical data | Additional information |
| Panel cutout | 91w x 43h (mm) | |
| Supply voltage | 1.5 VDC | 1 battery, C type |
| Battery voltage control | Yes | |
| Sensor cable length | Standard: 3 m | |
| Coefficient of expansion | α = 16 x 10-6 x 1/K | |
| Gap sensor/strip | Up to 2.5 mm | |
| Display | LCD | |
| Operating elements | 3 button keyboard | |
| Test mark/inerfer. protection | 3 accord. to IEC 801 | |
| Travel speed | 1.5 m/s | |
| System accuracy | ±0.1 mm | |
| Repeatability | 0.01 mm | |
| Operating temperature range | 0...+60ºC | |
| Storage temperature range | -20…+70ºC | |
| Humidity | Max 95% | Condensation not permited |
