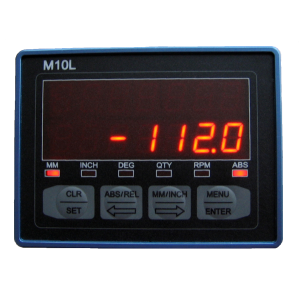

M10L
- All functions battery backup
- Battery lifetime 1 year min
- Resolution: 5 μm; 10 μm; 100 μm; 1 mm
- Sensor/tape gap - up to 2.5 mm
- Batteries on board
- Programmable zero point
- Programmable angle measurement
- Radius/diameter mode
- Programmable ratio coefficient
- High visibility two rows LED display
- Battery check and battery monitor
- Self-diagnostics in real time
- Automatic adjustment to wide mounting tolerances
- Parameters held in permanent memory
- Real time mm/inch/deg conversion
| Feature |
Technical data |
Additional information
|
| Housing |
96w x 72h x 42d (mm) |
|
| Panel cutout |
93w x 67h (mm) |
|
| Battery power supply |
1.5 VDC |
1 or 2 batteries, AA type |
| External power supply |
5 to 30 VDS |
|
| Sensor cable length |
|
Standard: 3 m |
| Coefficient of expansion |
|
α = 16 x 10-6 x 1/K |
| Gap sensor/strip |
Up to 2.5 mm |
|
| Display |
LED |
10 mm digit height, red light |
| Operating elements |
4 button keyboard |
|
| Test mark/inerfer. protection |
|
3 accord. to IEC 801 |
| Travel speed |
1.5 m/s |
|
| System accuracy |
±0.1 mm |
At Tu = 20ºC; option: 0.05 mm/M |
| Repeatability |
0.01 mm |
|
| Operating temperature range |
0...+60ºC |
|
| Storage temperature range |
-20…+70ºC |
|
| Humidity |
Max 95% |
Condensation not permited |
Disclaimer: All specifications are subject to
change without notice CBB031C7
